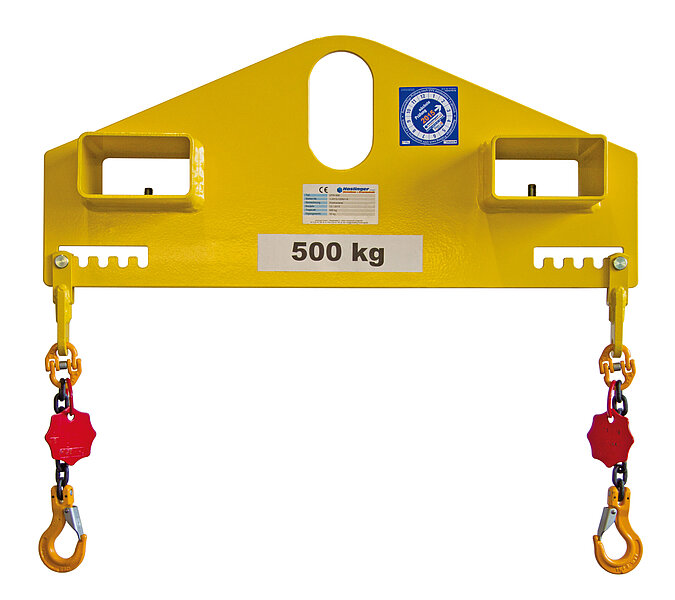

Universal spreader bar ULT1

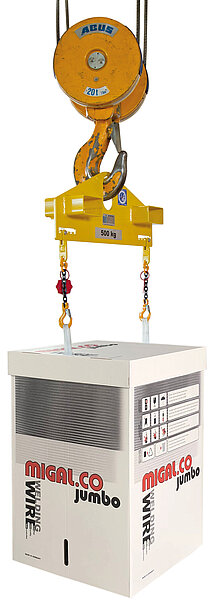

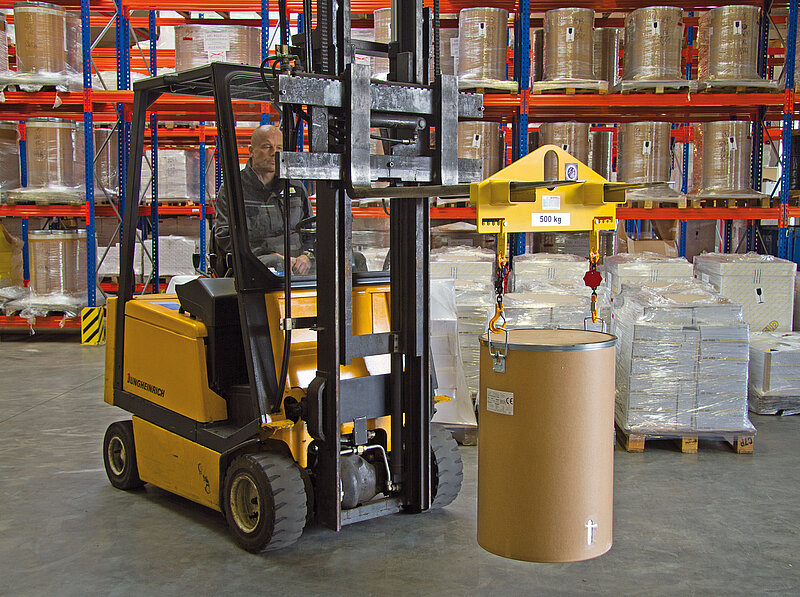

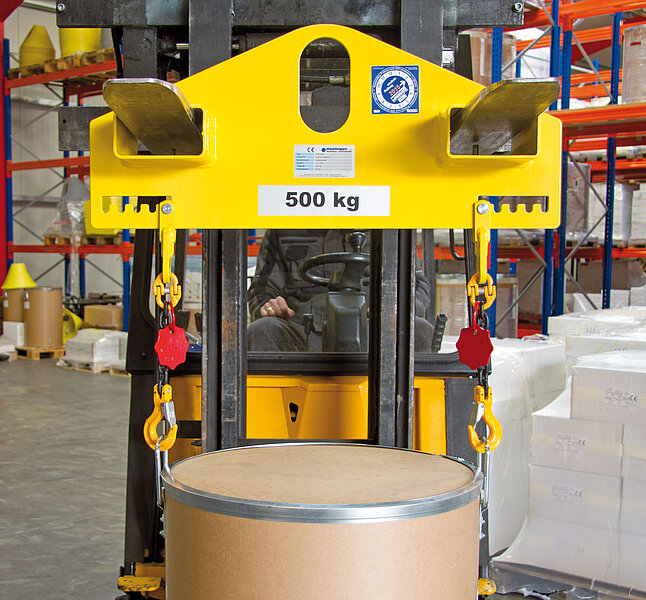

The universal spreader bar ULT1 is used for the transport of wire drums with the help of forklifts and cranes. The working width can be adjusted individually for small and large barrels. With a lifting capacity of 500 kg, it is also well suited for heavy barrels.

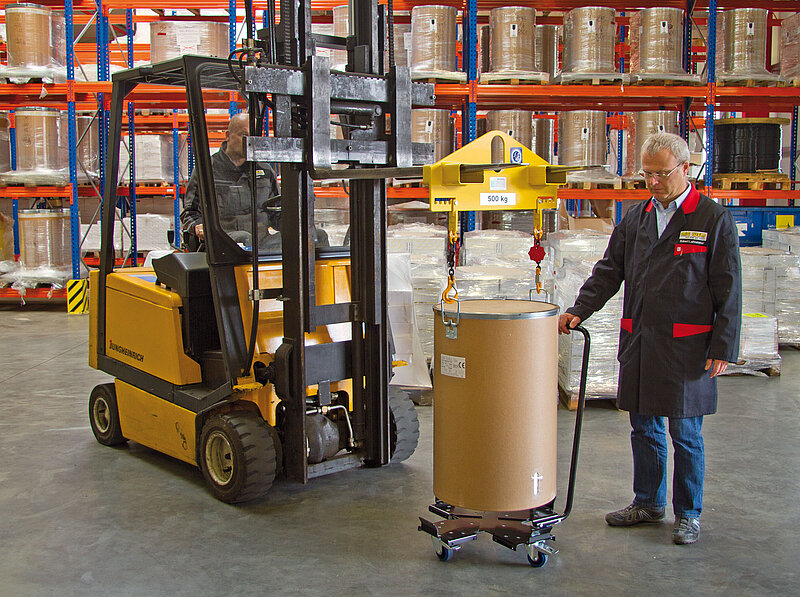

In conjunction with the universal drum trolley UFTW1 this results in an optimal solution for the economic use of wire barrels.
The spreader bar is powder coated, typed, and carries the CE mark.

It comes complete with the chain hanger 6-8, 300 mm long, 6-8 hooks fully assembled with fork terminal and connector, and manufacturer's declaration, operating instructions and test log.

Technical data

Maximum load: 500 kg
LxBxH over all: 750x350x400 mm
Products weight: 20 kg
Working width: 500-700 mm, adjustable in 5 steps

Reference table

DesignationItem numberWeight [kg]Qty in stock
Universal spreader bar ULT1 10,10,1,0002204
